    PCD Series

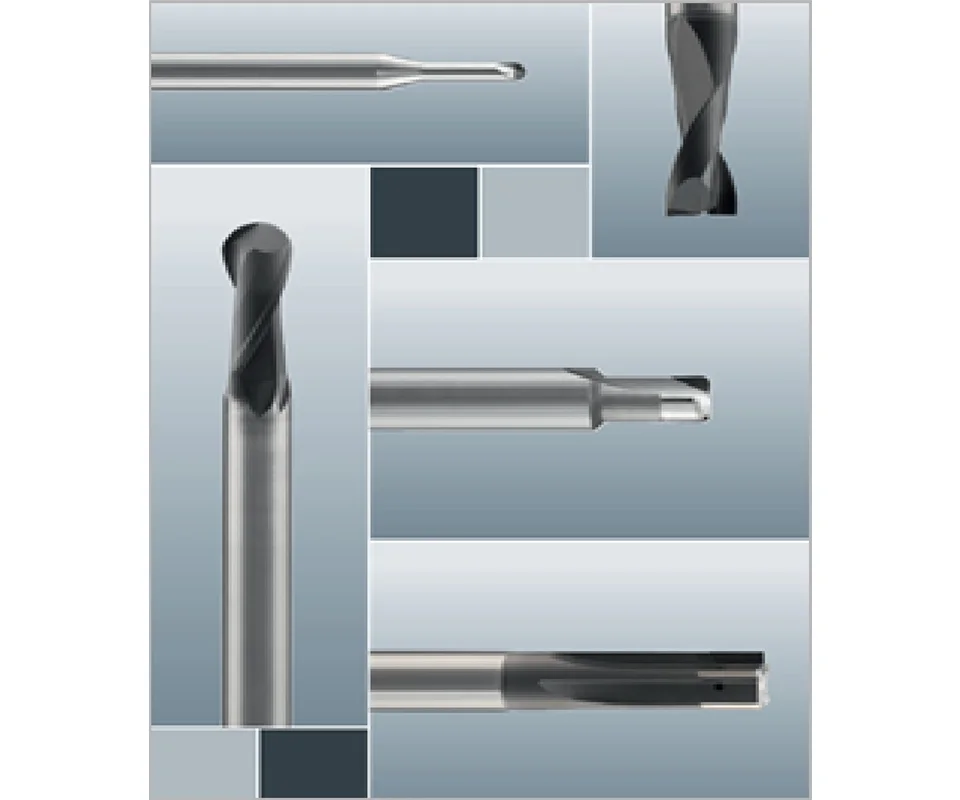

    Polycrystalline Diamond Compoct (PCD) for high-end cutting tools

    Advantages Of PCD Materials

    Polycrystalline Diamond Compoct (PCD) for high-end cutting tools

    • PCD has a hardness of 8000 HV, which is 80-120 times that of cemented carbide.
    • The thermal conductivity of PCD is 7000W/mk, which is 1.5-9 times that of cemented carbide, even higher than PCBN and copper.
    • The PCD friction coefficient is only 0.1-0.3 (the cemented carbide is 0.4-1), and the PCD cutter reduces the cutting force significantly.
    • The thermal expansion coefficient of PCD is 0.9*10-6-1.18*10-6, which is equivalent to one-fifth of that of cemented carbide. Therefore, PCD cutter has small thermal expansion coefficient and high precision.
    • The affinity between PCD and non-ferrous metals and non-metallic materials is very small, and it is not easy to bond on the tip of the blade, and it is not easy to form built-up edge.

    So PCD material cutter tools are widely used in high-speed and high-efficiency processing of non-ferrous metals and non-ferrous metal alloy materials.

    PCD material performance introduction

    Specification model Particle size Characteristic Application field
    ZYD510 super coarse particles and mixture particle size It is an ultra-high hardness and extremely high wear resistance with ultra high toughness super coarse mixture particle size material. It is used in the field of difficult processing and harsh processing environment. It is a special requirement and application. material. Used in the processing of ultra-wear-resistant industries such as stone, woodworking, non-ferrous metals, silicon aluminum alloys, carbon fiber composite materials, tungsten carbide, high-strength cast iron and dual-color metal materials.
    ZYD302 coarse particles and mixture particle size Ultra-high wear resistance and toughness, heat resistance and thermal stability, excellent conductive processing properties and machining property. Widely used in the processing of woodworking (solid wood, multi-layer forest board, medium density board, etc.), stone, non-ferrous metals, hardened rubber, graphite, tungsten carbide, ceramics, metal matrix composites, high-strength carbon fiber composites, etc.
    ZYD010 medium grain size with strong applicability Strong diamond bonding, excellent wear resistance and toughness, good electrical discharge machining and  machining property Widely used in the processing of a variety of materials, especially for the processing of non-ferrous metals, including aluminum, aluminum alloys, copper, copper alloys, fiber reinforced composite materials, woodworking (solid wood, multi-layer boards, medium density board, etc.) and electronic materials, Molds and tool materials of choice for new and unknown machining applications.
    ZYD005 fine grain size Excellent toughness and sharpness, excellent electrical conductivity and machinability Used in the electronic materials, non-ferrous metals fashioning, low, medium and high silicon content aluminum alloys, electronic circuit boards and so on high-speed processing,Recommended for the preparation of complex tools
    ZYD001 ultrafine particle size High toughness and high wear resistance, excellent electrical conductivity and processing properties, can produce sharp and high precision cutting edge Mainly used in high-speed, high-precision, high-gloss processing fields of various non-ferrous metals, titanium, titanium alloys, liquid crystal displays, high-hardness brittle composite materials, electronic materials and plastics.

    PCD Application field

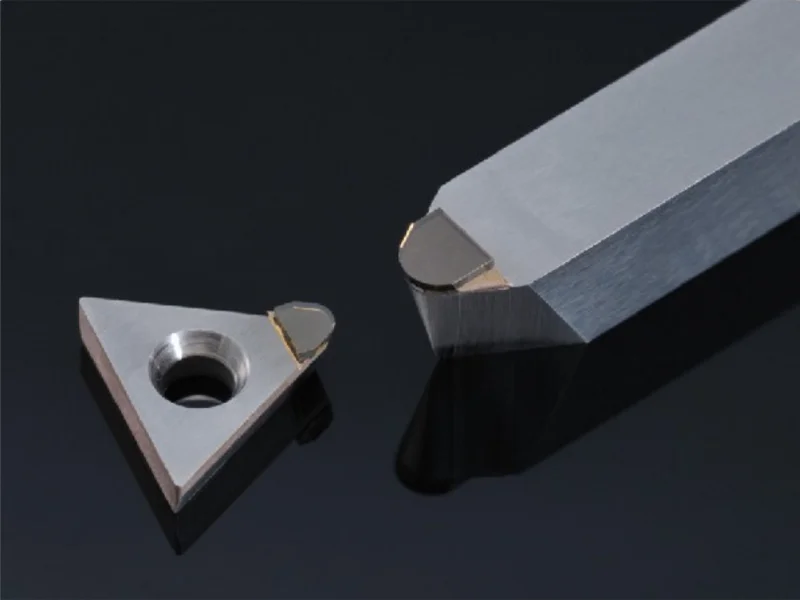

    Non-ferrous metal processing, High-end cutting tool processing
